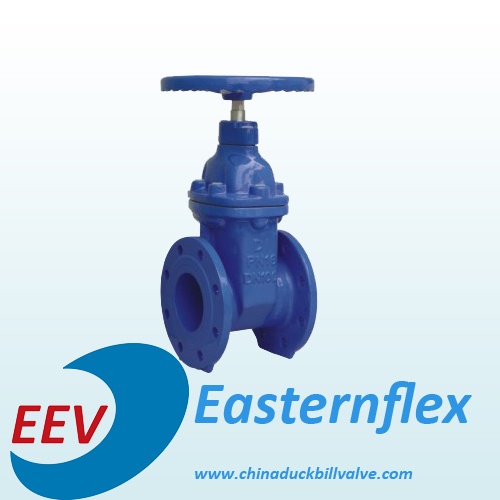

Series DIN3352 Non Rising Resilient Seated Gate Valve
Series DIN3352 Non Rising Resilient Seated Gate Valve
Product name : Series DIN3352 Non Rising Resilient Seated Gate Valve
Item :
Details :
Series DIN3325 Non Rising Resilient Seated Gate Valve

Components

Body: Ductile iron.
Disc: Ductilie iron with NBR/EPDM covered.
Bonnet: Ductile iron
Stem: SS
O-ring: NBR
Nut: Brass
Hand wheel: Ductile iron.

Application:
Face to face is according to DIN3202-F4
Flange drilling is according to DIN2532/2533/201.

Test:
Working pressure: PN10       PN16
Shell pressure:      1.5Mpa    2.4Mpa
Seat pressure:       1.1Mpa    1.7Mpa

Size from DN50 to DN500.
